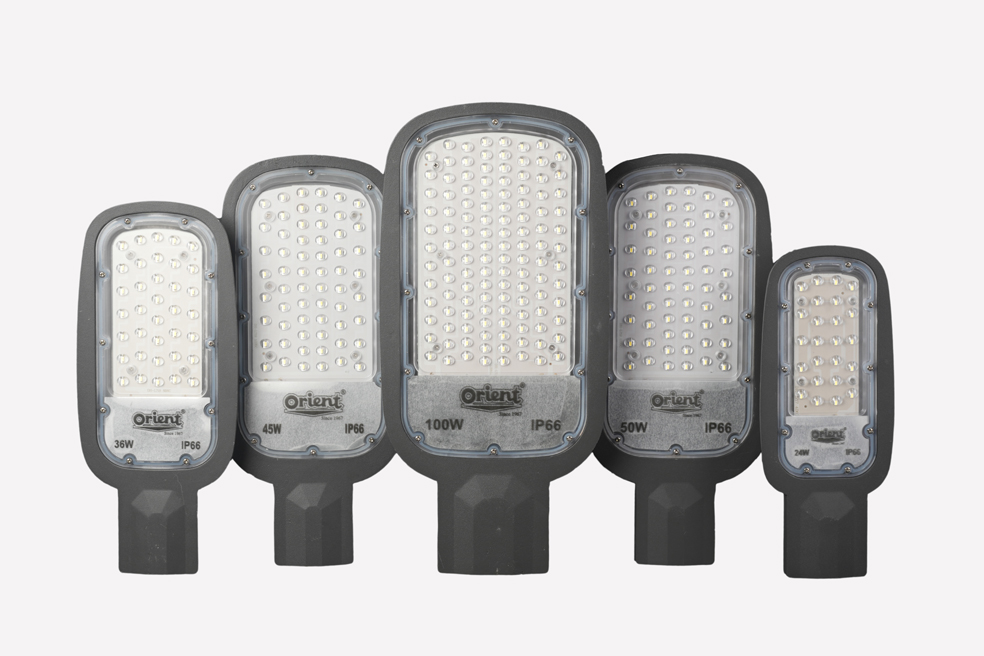

Brighten the Path Ahead with Elumx Street Lights Discover a new era of urban illumination with Elumx Street Lights. Designed to seamlessly blend aesthetics with functionality, Elumx brings a revolution to cityscapes, neighbourhoods, and thoroughfares. St
| WATTAGE | M.R.P. |
|---|---|
| ELUMX FLOOD LIGHT 24W | ₹ 1,900.00 |
| ELUMX FLOOD LIGHT 36W | ₹ 2,300.00 |
| ELUMX FLOOD LIGHT 50W | ₹ 2,900.00 |
| ELUMX FLOOD LIGHT 100W | ₹ 5,150.00 |
| ELUMX FLOOD LIGHT 45W WITH DAY N NIGHT SENSOR | ₹ 3,150.00 |
Step into a brighter future with Elumx Street Lights. Offering a perfect blend of functionality, efficiency, and aesthetics, Elumx redefines urban illumination. From smart controls to durable construction, Elumx is the beacon of progress for modern city lighting solutions.
With a lifetime up to 15,000 hrs** which can reduce the hassle of frequently replacing the lamp and enjoy a perfect lighting solution
City Streets: Illuminate main thoroughfares and avenues for enhanced visibility and safety.
Residential Areas: Provide a sense of security and community with well-lit streets.
Commercial Districts: Enhance the nighttime appeal of shopping and business districts.
| BASIC DETAILS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WATTAGE | 30W | 50W | 100W | 150W | 200W | ||||||
| CRI | >80 | >80 | >80 | >80 | >80 | ||||||
| POWER FACTOR | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ≥0.95 | ||||||
| BEAM ANGLE | 120° | 120° | 120° | 120° | 120° | ||||||
| COLOUR | 6500K, 3000K | 6500K, 3000K, RED, GREEN, BLUE, PINK | 6500K, 3000K | 6500K, 3000K | 6500K, 3000K | ||||||
| POWER FEATURES | |||||||||||
| RATED INPUT VOLTAGE | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC | ||||||
| FREQUENCY | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | ||||||
| OPERATING TEMPERATURE | -10°C – 45°C | -10°C – 45°C | -10°C – 45°C | -10°C – 45°C | -10°C – 45°C | ||||||
| OPERATING VOLTAGE | 100 - 300 V AC | 100 - 300 V AC | 100 - 300 V AC | 100 - 300 V AC | 100 - 300 V AC | ||||||
| SAFETY FEATURES | |||||||||||
| PROTECTION AGAINST ELECTRICAL SHOCK | Class 1 | Class 1 | Class 1 | Class 1 | Class 1 | ||||||
| OPEN CKT PROTECTION | Yes | Yes | Yes | Yes | Yes | ||||||
| SHORT CKT PROTECTION | Yes | Yes | Yes | Yes | Yes | ||||||
| HIGH VOLTAGE CUT-OFF | 300-320V AC | 300-320V AC | 300-320V AC | 300-320V AC | 300-320V AC | ||||||
| PHASE TO PHASE | YES | YES | YES | YES | YES | ||||||
| WITHSTANDS VOLTAGE | 440 V AC for 2 hrs. | 440 V AC for 2 hrs. | 440 V AC for 2 hrs. | 440 V AC for 2 hrs. | 440 V AC for 2 hrs. | ||||||
| SURGE PROTECTION | ≥6.0KV | ≥6.0KV | ≥6.0KV | ≥6.0KV | ≥6.0KV | ||||||
| PERFORMANCE FEATURE | |||||||||||
| RATED LUMENS | 2640 | 3960 | 5500 | 11000 | 4950 | ||||||
| LIFE** | 50,000 Hrs. | 50,000 Hrs. | 50,000 Hrs. | 50,000 Hrs. | 50,000 Hrs. | ||||||
| START UP TIME | Instant | Instant | Instant | Instant | Instant | ||||||
| MECHANICAL FEATURES | |||||||||||
| IP Grade | 66 | 66 | 66 | 66 | 66 | ||||||
| Housing | Aluminium pressure die casted housing with powder coating | Aluminium pressure die casted housing with powder coating | Aluminium pressure die casted housing with powder coating | Aluminium pressure die casted housing with powder coating | Aluminium pressure die casted housing with powder coating | ||||||
| Diffuser/Glass | PC, Integrated Lens Diffuser | PC, Integrated Lens Diffuser | PC, Integrated Lens Diffuser | PC, Integrated Lens Diffuser | PC, Integrated Lens Diffuser | ||||||
| DIMENSIONS | |||||||||||
| FINISH PRODUCT DIMENSION (LXWXH) | 200± 5mm X 162± 5mm X 35mm ± 3mm | 248± 5mm X 190± 5mm X 35.0mm ± 3mm | 294 ± 5mm x 218 ± 5mm X 44.0mm ± 3mm | ||||||||
| PACKAGING FEATURES | |||||||||||
| SALES PACKAGE | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | ||||||
| NET CONTENT | 1 Number | 1 Number | 1 Number | 1 Number | 1 Number | ||||||
| QTY IN MASTER PACK | 20 | 10 | 5 | 5 | 5 | ||||||
| WARRANTY | 2 YEARS | 2 YEARS | 2 YEARS | 2 YEARS | 2 YEARS | ||||||
