Elevate your lighting experience with our Breyon LED Slim Aluminium Edge-lit Panel, a perfect harmony of sophistication and superior performance. Designed for seamless integration into any environment, this panel not only boasts a slim aluminium profile but also incorporates a superior driver for enhanced efficiency and longevity.
| WATTAGE | M.R.P. |
|---|---|
| BREYON PANEL 6W | ₹ 380.00 |
| BREYON PANEL 12W | ₹ 520.00 |
| BREYON PANEL 18W | ₹ 870.00 |
Illuminate your surroundings with sophistication and efficiency using our BREYON LED Slim Aluminium Edge-lit Panel. With a sleek profile, edge-lit brilliance, and a superior driver, this panel is a statement of style and performance. Elevate your space and experience lighting at its finest.
With a lifetime up to 15,000 hrs** which can reduce the hassle of frequently replacing the lamp and enjoy a perfect lighting solution
Superior Driver Technology: Our LED Panel is powered by a superior driver, ensuring optimal performance, stability, and efficiency. Benefit from consistent light output, longer lifespan, and energy savings with the advanced driver technology.
Office Spaces: Enhance productivity with uniform and glare-free lighting.
Retail Environments: Showcase products with clarity and brilliance.
Residential Interiors: Create a cozy and stylish atmosphere in living rooms, kitchens, and bedrooms.
| BASIC DETAILS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WATTAGE | 6W | 12W | 18W | ||||||||
| CRI | ≥80 | ≥80 | ≥80 | ||||||||
| POWER FACTOR | ≥0.90 | ≥0.90 | ≥0.90 | ||||||||
| BEAM ANGLE | 120° | 120° | 120° | ||||||||
| COLOUR | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | ||||||||

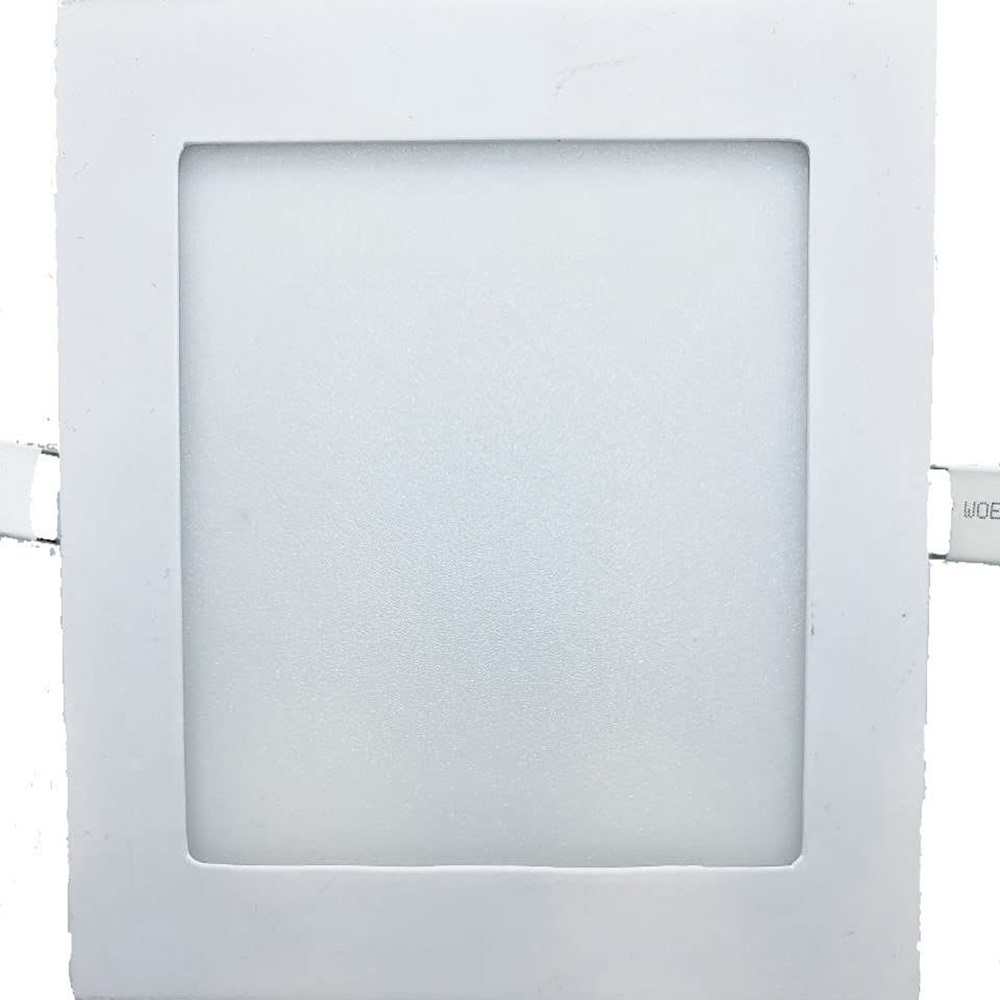

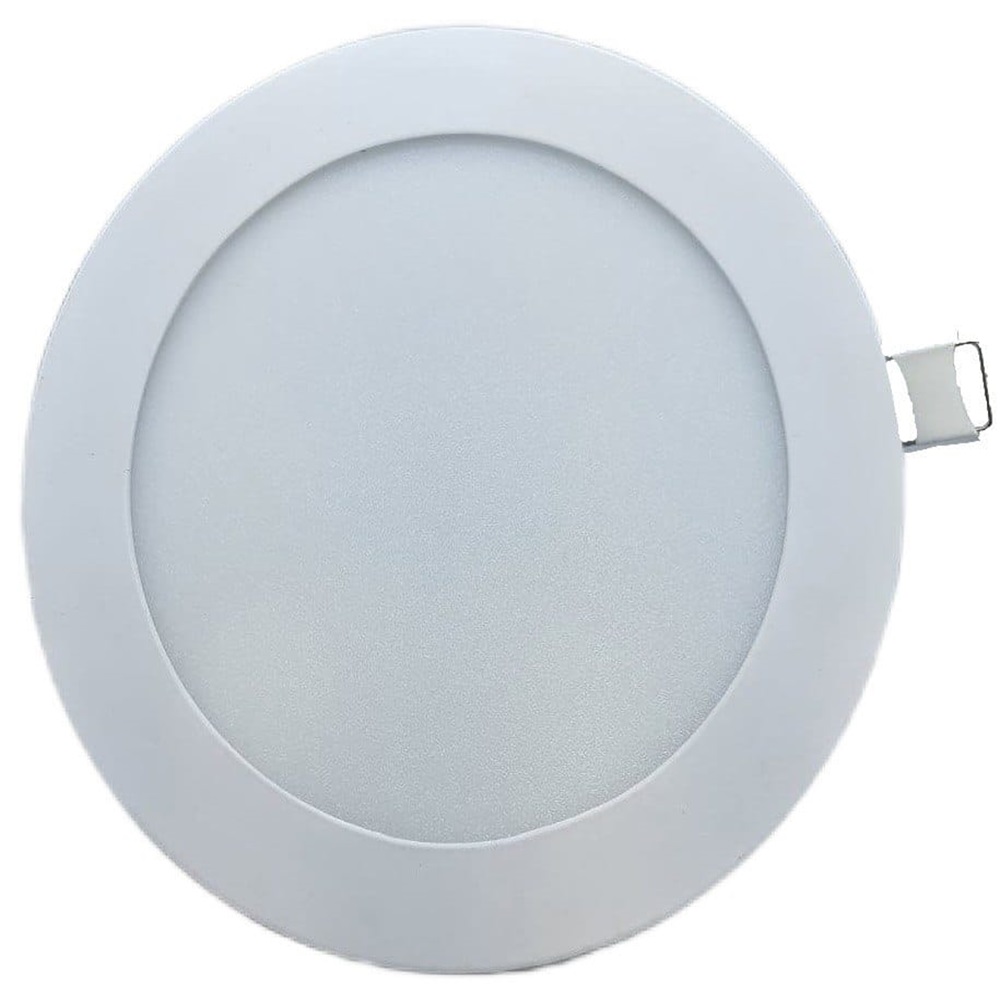

| SHAPE | ROUND, SQUARE | ROUND, SQUARE | ROUND, SQUARE | ||||||||
| PRODUCT REMARK | SLIM ALUMINIUM DRIVER BASED EDGELIT PANEL | SLIM ALUMINIUM DRIVER BASED EDGELIT PANEL | SLIM ALUMINIUM DRIVER BASED EDGELIT PANEL | ||||||||
| POWER FEATURES | |||||||||||
| RATED INPUT VOLTAGE | 220-240V AC | 220-240V AC | 220-240V AC | ||||||||
| FREQUENCY | 50 Hz | 50 Hz | 50 Hz | ||||||||
| OPERATING TEMPERATURE | 0°C – 45°C | 0°C – 45°C | 0°C – 45°C | ||||||||
| PERFORMANCE FEATURE | |||||||||||
| RATED LUMENS | 480 | 960 | 1440 | ||||||||
| LIFE** | 25,000 Hrs. | 25,000 Hrs. | 25,000 Hrs. | ||||||||
| START UP TIME | Instant | Instant | Instant | ||||||||
| SAFETY FEATURES | |||||||||||
| OPEN CKT PROTECTION | Yes | Yes | Yes | ||||||||
| SHORT CKT PROTECTION | Yes | Yes | Yes | ||||||||
| HIGH VOLTAGE CUT-OFF | 90-300V AC | 90-300V AC | 90-300V AC | ||||||||
| WITHSTANDS VOLTAGE | 440 V AC for 2 hrs. | 440 V AC for 2 hrs. | 440 V AC for 2 hrs. | ||||||||
| SURGE PROTECTION | ≥6.0KV | ≥6.0KV | ≥6.0KV | ||||||||
| DIMENSIONS | |||||||||||
| PRODUCT DIMENSION | DIA 120 mm X 12 mm / 120x120x12 mm | DIA 178 mm X 12 mm / 178x178x12 mm | DIA 225 mm X 12 mm / 225x225x12 mm | ||||||||
| CUTOUT | DIA 105 mm X 12 mm / 105x105x12 mm | DIA 155 mm X 12 mm / 155x155x12 mm | DIA 200 mm X 12 mm / 200x200x12 mm | ||||||||
| PACKAGING FEATURES | |||||||||||
| SALES PACKAGE | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | ||||||||
| NET CONTENT | 1 Number | 1 Number | 1 Number | ||||||||
| QTY IN MASTER PACK | 40 | 30 | 20 | ||||||||
| WARRANTY | 2 YEARS | 2 YEARS | 2 YEARS | ||||||||
