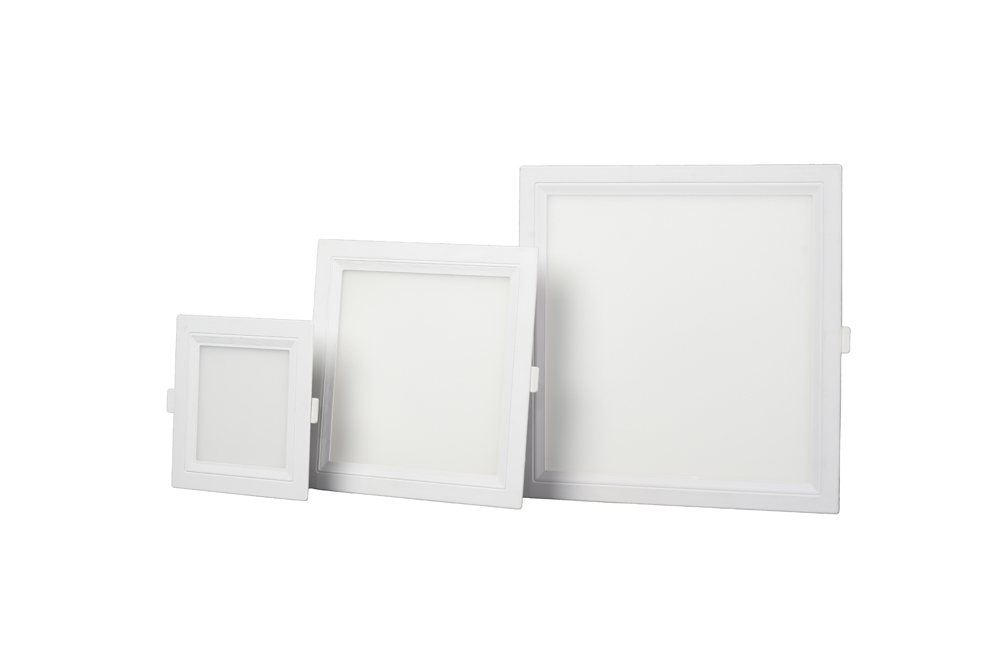

Elevate your lighting experience with the Sapphire Panel — a beacon of brilliance that seamlessly combines innovation and style. Designed to provide radiant illumination with ease, the Sapphire Panel is available in 6W, 12W, 15W, and 20W configurations, presenting versatility in both round and square shapes. What sets it apart? An integrated driver that ensures a streamlined installation process and consistent performance.
| WATTAGE | M.R.P. |
|---|---|
| SAPPHIRE PANEL6W | ₹ 400.00 |
| SAPPHIRE PANEL12W | ₹ 550.00 |
| SAPPHIRE PANEL15W | ₹ 700.00 |
| SAPPHIRE PANEL15W | ₹ 800.00 |
Illuminate your space with the Sapphire Panel, where versatility meets elegance. With multiple wattage options, shapes, and an integral driver for simplified installation, the Sapphire Panel is the epitome of radiant lighting. Let the Sapphire Panel redefine the way you experience light.
With a lifetime up to 25,000 hrs** which can reduce the hassle of frequently replacing the LED PANEL and enjoy a perfect lighting solution
Integral Driver for Simplified Installation: Enjoy a hassle-free installation process with the integral driver seamlessly incorporated into the Sapphire Panel. Streamline your lighting setup and eliminate the need for external drivers, ensuring a clean and efficient installation.
Residential Interiors: Illuminate living rooms, kitchens, and bedrooms with style and efficiency.
Commercial Spaces: Enhance the ambiance of offices, lobbies, and retail environments with the Sapphire Panel's sleek design.
| BASIC DETAILS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WATTAGE | 6W | 12W | 15W | 20W | |||||||
| CRI | ≥80 | ≥80 | ≥80 | ≥80 | |||||||
| POWER FACTOR | ≥0.90 | ≥0.90 | ≥0.90 | ≥0.90 | |||||||
| BEAM ANGLE | 120° | 120° | 120° | 120° | |||||||
| COLOUR | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | |||||||
| SHAPE | ROUND, SQAURE | ROUND, SQAURE | ROUND, SQAURE | ROUND, SQAURE | |||||||
| PRODUCT REMARK | EDGELIT PANEL WITH INTEGRAL DRIVER | EDGELIT PANEL WITH INTEGRAL DRIVER | EDGELIT PANEL WITH INTEGRAL DRIVER | EDGELIT PANEL WITH INTEGRAL DRIVER | |||||||
| POWER FEATURES | |||||||||||
| RATED INPUT VOLTAGE | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC | |||||||
| FREQUENCY | 50 Hz | 50 Hz | 50 Hz | 50 Hz | |||||||
| OPERATING TEMPERATURE | 0°C – 45°C | 0°C – 45°C | 0°C – 45°C | 0°C – 45°C | |||||||
| RATED INPUT CURRENT | 0.028A | 0.060A | 0.066A | 0.090A | |||||||
| PERFORMANCE FEATURE | |||||||||||
| RATED LUMENS | 600 | 1200 | 1500 | 2000 | |||||||
| LIFE** | 25,000 Hrs. | 25,000 Hrs. | 25,000 Hrs. | 25,000 Hrs. | |||||||
| START UP TIME | Instant | Instant | Instant | Instant | |||||||
| SAFETY FEATURES | |||||||||||
| OPEN CKT PROTECTION | Yes | Yes | Yes | Yes | |||||||
| SHORT CKT PROTECTION | Yes | Yes | Yes | Yes | |||||||
| VOLTAGE RANGE | 100-400 VAC | 100-400 VAC | 100-400 VAC | 100-400 VAC | |||||||
| WITHSTANDS VOLTAGE | 440 V AC for 1 HRS. | 440 V AC for 1 HRS. | 440 V AC for 1 HRS. | 440 V AC for 1 HRS. | |||||||
| SURGE PROTECTION | ≥4.0KV | ≥4.0KV | ≥4.0KV | ≥4.0KV | |||||||
| DIMENSIONS | |||||||||||
| PRODUCT DIMENSION | DIA 118 mm X 26 mm / 118x118x26 mm | DIA 145 mm X 26 mm / 145x145x26 mm | DIA 168 mm X 26 mm / 168x168x26 mm | DIA 225 mm X 26 mm / 225x225x26 mm | |||||||
| CUTOUT | DIA 100 mm X 26 mm / 100x100x26 mm | DIA 124 mm X 26 mm / 124x124x26 mm | DIA 153 mm X 26 mm / 153x153x26 mm | DIA 205 mm X 26 mm / 205x205x26 mm | |||||||
| PACKAGING FEATURES | |||||||||||
| SALES PACKAGE | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | |||||||
| NET CONTENT | 1 NUMBER | 1 NUMBER | 1 NUMBER | 1 NUMBER | |||||||
| QTY IN MASTER PACK | 30 | 20 | 20 | 10 | |||||||
| WARRANTY | 2 YEARS | 2 YEARS | 2 YEARS | 2 YEARS | |||||||
