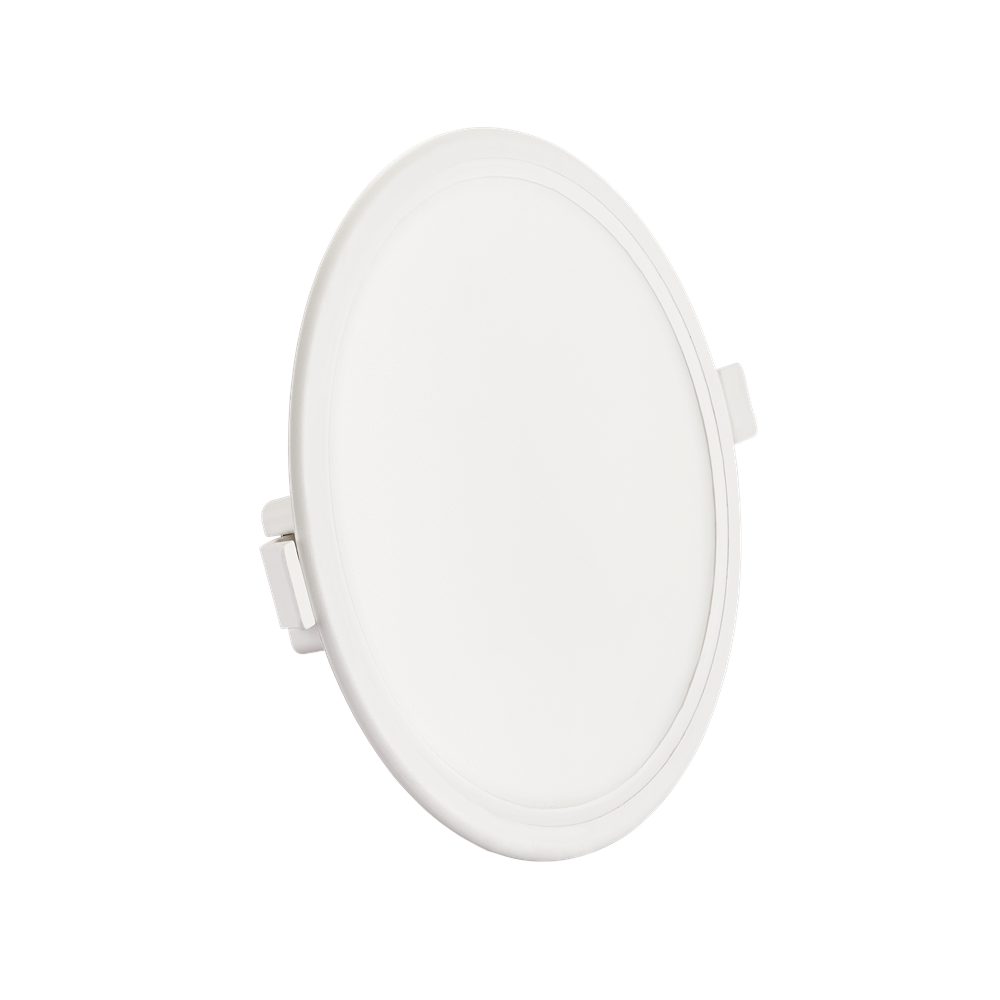

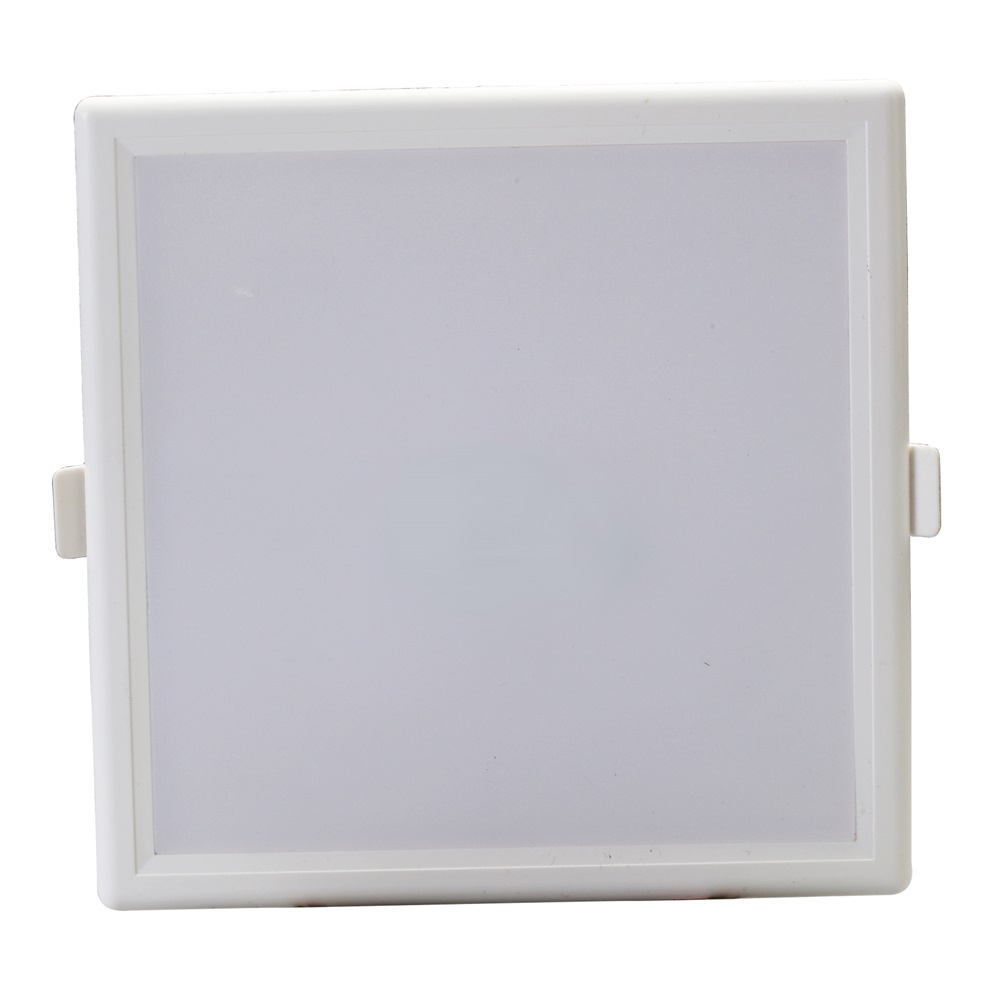

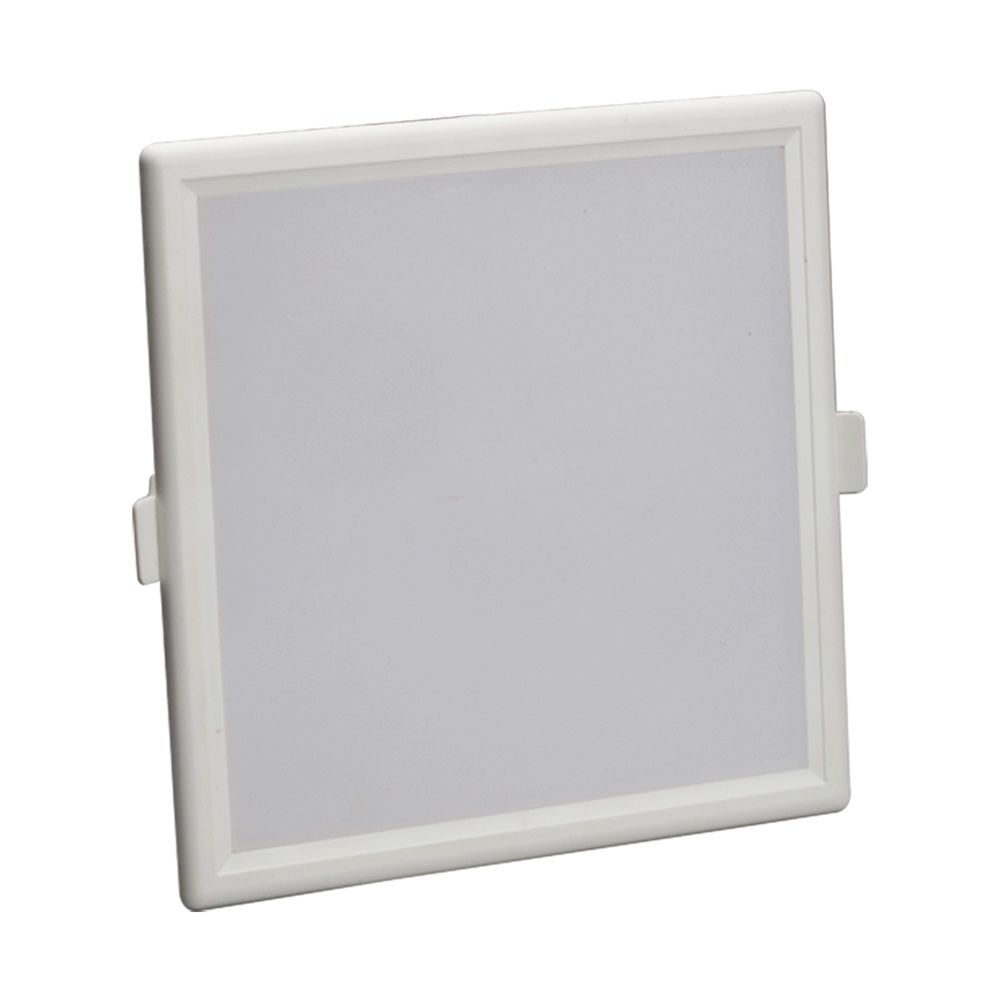

Introducing Crescent, where cutting-edge technology meets modern design to redefine your lighting experience. Crafted for optimal performance and aesthetic appeal, Crescent Backlit Panels bring a new dimension to ambient lighting. With an impressive 120 lumens per watt, these panels are available in both round and square shapes, catering to your diverse illumination needs.
| WATTAGE | M.R.P. |
|---|---|
| CRESCENT BACKLIT PANEL 10W | ₹ 525.00 |
| CRESCENT BACKLIT PANEL 12W | ₹ 625.00 |
| CRESCENT BACKLIT PANEL 15W | ₹ 700.00 |
| CRESCENT BACKLIT PANEL 20W | ₹ 925.00 |
Transform your space with the brilliance of Crescent Backlit Panels. From the exceptional luminous efficacy to the variety of shapes and wattages, Crescent ensures a tailored lighting solution for every setting. Illuminate your world with precision and style.
With a lifetime up to 15,000 hrs** which can reduce the hassle of frequently replacing the lamp and enjoy a perfect lighting solution
High Luminous Efficacy: Immerse your space in bright, energy-efficient light with Crescent Backlit Panels boasting an exceptional 120 lumens per watt. Experience optimal visibility and clarity while minimizing energy consumption
Uniform Backlit Glow: Experience a uniform and diffused glow that eliminates harsh shadows, creating a visually pleasing and comfortable atmosphere.
For enhancing the ambiance of commercial spaces, offices, and residential interiors.
| BASIC DETAILS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WATTAGE | 10W | 12W | 15W | 20W | |||||||
| CRI | ≥80 | ≥80 | ≥80 | ≥80 | |||||||
| POWER FACTOR | ≥0.90 | ≥0.90 | ≥0.90 | ≥0.90 | |||||||
| BEAM ANGLE | 120° | 120° | 120° | 120° | |||||||
| COLOUR | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | |||||||
| SHAPE | ROUND, SQUARE | ROUND, SQUARE | ROUND, SQUARE | ROUND, SQUARE | |||||||
| PRODUCT REMARK | BACKLIT PANEL WITH 100 LPW | BACKLIT PANEL WITH 120 LPW | BACKLIT PANEL WITH 120 LPW | BACKLIT PANEL WITH 120 LPW | |||||||
| POWER FEATURES | |||||||||||
| RATED INPUT VOLTAGE | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC | |||||||
| FREQUENCY | 50 Hz | 50 Hz | 50 Hz | 50 Hz | |||||||
| OPERATING TEMPERATURE | 0°C – 45°C | 0°C – 45°C | 0°C – 45°C | 0°C – 45°C | |||||||
| RATED INPUT CURRENT | 0.050A | 0.070A | 0.085A | 0.115A | |||||||
| PERFORMANCE FEATURE | |||||||||||
| RATED LUMENS | 1000 | 1440 | 1800 | 2400 | |||||||
| LIFE** | 25,000 Hrs. | 25,000 Hrs. | 25,000 Hrs. | 25,000 Hrs. | |||||||
| START UP TIME | INSTANT | INSTANT | INSTANT | INSTANT | |||||||
| SAFETY FEATURES | |||||||||||
| OPEN CKT PROTECTION | Yes | Yes | Yes | Yes | |||||||
| SHORT CKT PROTECTION | Yes | Yes | Yes | Yes | |||||||
| VOLTAGE RANGE | 90-300 VAC | 90-300 VAC | 90-300 VAC | 90-300 VAC | |||||||
| WITHSTANDS VOLTAGE | 440 V AC FOR 1 HRS. | 440 V AC FOR 1 HRS. | 440 V AC FOR 1 HRS. | 440 V AC FOR 1 HRS. | |||||||
| SURGE PROTECTION | ≥4.0KV | ≥4.0KV | ≥4.0KV | ≥4.0KV | |||||||
| DIMENSIONS | |||||||||||
| PRODUCT DIMENSION | DIA 115 mm X 30 mm / 115x115x30 mm | DIA 140 mm X 30 mm / 140x140x30 mm | DIA 170 mm X 30 mm / 170x170x30 mm | DIA 215 mm X 32 mm / 215x215x32 mm | |||||||
| CUTOUT | DIA 100 mm X 30 mm / 100x100x30 mm | DIA 125 mm X 30 mm / 125x125x30 mm | DIA 150 mm X 30 mm / 150x150x30 mm | DIA 190 mm X 32 mm / 190x190x32 mm | |||||||
| PACKAGING FEATURES | |||||||||||
| SALES PACKAGE | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | |||||||
| NET CONTENT | 1 NUMBER | 1 NUMBER | 1 NUMBER | 1 NUMBER | |||||||
| QTY IN MASTER PACK | 40 | 40 | 20 | 10 | |||||||
| WARRANTY | 2 YEARS | 2 YEARS | 2 YEARS | 2 YEARS | |||||||
