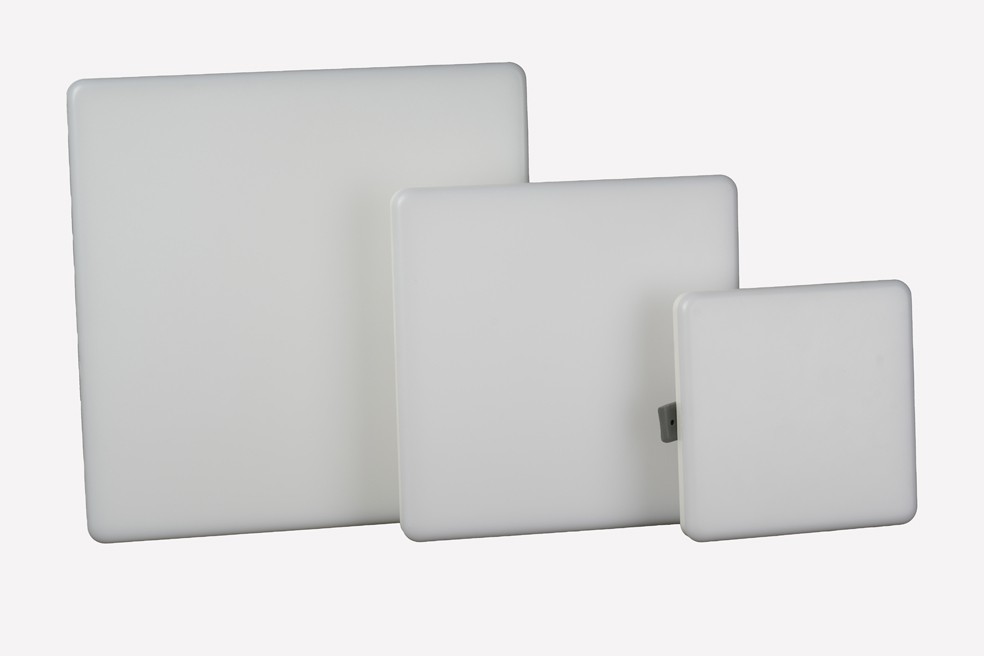

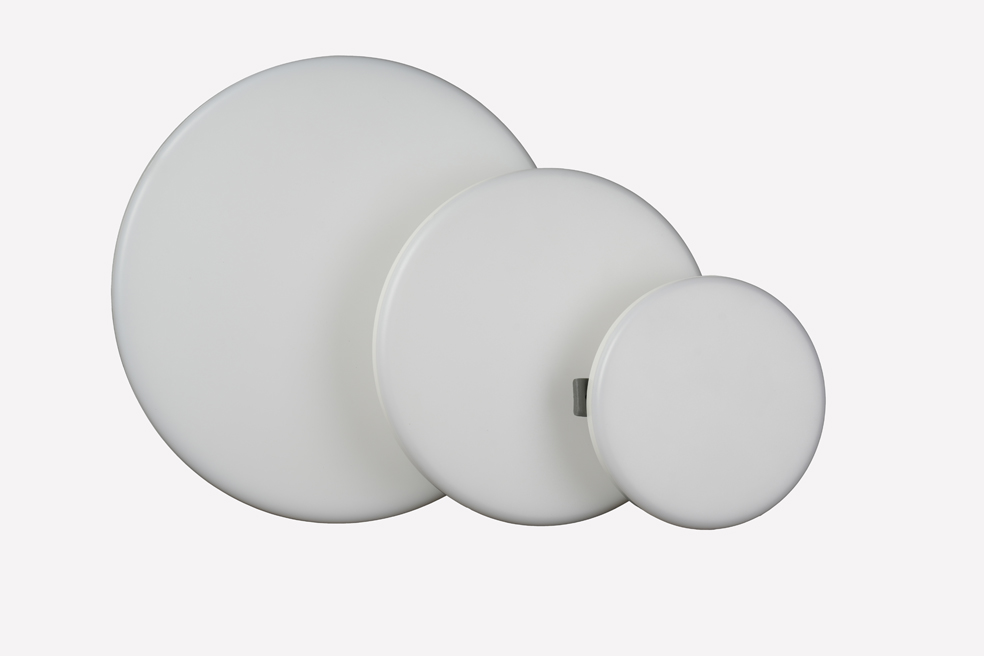

Introducing the SUPPLE MULTIWAY PANEL, a breakthrough in lighting design that brings unprecedented adaptability to your spaces. This innovative panel is designed to redefine the conventional, offering a cutout that seamlessly varies from 75 to 200 mm. With this adjustable feature, you have the flexibility to customize the panel according to your unique preferences and installation requirements.
| WATTAGE | M.R.P. |
|---|---|
| SUPPLE MULTIWAYPANEL 12W | ₹ 530.00 |
| SUPPLE MULTIWAYPANEL 18W | ₹ 790.00 |
| SUPPLE MULTIWAYPANEL 24W | ₹ 1,050.00 |
Experience a new level of lighting adaptability with the Adjustable Cutout Panel. From 75 to 200 mm, this panel offers customizable precision, ensuring a perfect fit for any setting. Redefine your lighting solutions and bring versatility to the forefront with the Adjustable Cutout Panel.
With a lifetime up to 25,000 hrs** which can reduce the hassle of frequently replacing the LED PANEL and enjoy a perfect lighting solution
Adjustable Cutout Precision: The Adjustable Cutout Panel is engineered with precision, allowing you to vary the cutout size effortlessly. Achieve a customized fit that adapts seamlessly to different installation scenarios, providing unparalleled flexibility.
Dynamic Sizing for Any Setting: With a versatile cutout range from 75 to 200 mm, this panel is suitable for various ceiling sizes and structures. Perfect for both retrofit projects and new installations, the Adjustable Cutout Panel effortlessly accommodates diverse architectural needs.
Residential Interiors: Illuminate living rooms, kitchens, and bedrooms with style and efficiency.
Commercial Spaces: Enhance the ambiance of offices, lobbies, and retail environments with the Supple multiway led panel sleek design.
| BASIC DETAILS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WATTAGE | 12W | 18W | 24W | ||||||||
| CRI | ≥80 | ≥80 | ≥80 | ||||||||
| POWER FACTOR | ≥0.90 | ≥0.90 | ≥0.90 | ||||||||
| BEAM ANGLE | 120°C | 120°C | 120°C | ||||||||
| COLOUR | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | 6500K, 4000K, 3000K | ||||||||
| SHAPE | ROUND, SQAURE | ROUND, SQAURE | ROUND, SQAURE | ||||||||
| PRODUCT REMARK | MULTIWAY PANEL WITH ADJUSTABLE CUTOUT FOR WIDE RANGE OF APPLICATION | MULTIWAY PANEL WITH ADJUSTABLE CUTOUT FOR WIDE RANGE OF APPLICATION | MULTIWAY PANEL WITH ADJUSTABLE CUTOUT FOR WIDE RANGE OF APPLICATION | ||||||||
| POWER FEATURES | |||||||||||
| RATED INPUT VOLTAGE | 220-240V AC | 220-240V AC | 220-240V AC | ||||||||
| FREQUENCY | 50 Hz | 50 Hz | 50 Hz | ||||||||
| OPERATING TEMPERATURE | 0°C – 45°C | 0°C – 45°C | 0°C – 45°C | ||||||||
| RATED INPUT CURRENT | |||||||||||
| PERFORMANCE FEATURE | |||||||||||
| RATED LUMENS | 1200 | 1800 | 2400 | ||||||||
| LIFE** | 25,000 Hrs. | 25,000 Hrs. | 25,000 Hrs. | ||||||||
| START UP TIME | Instant | Instant | Instant | ||||||||
| SAFETY FEATURES | |||||||||||
| OPEN CKT PROTECTION | Yes | Yes | Yes | ||||||||
| SHORT CKT PROTECTION | Yes | Yes | Yes | ||||||||
| VOLTAGE RANGE | 100-400 VAC | 100-400 VAC | 100-400 VAC | ||||||||
| WITHSTANDS VOLTAGE | 440 V AC for 1 HRS. | 440 V AC for 1 HRS. | 440 V AC for 1 HRS. | ||||||||
| SURGE PROTECTION | ≥4.0KV | ≥4.0KV | ≥4.0KV | ||||||||
| DIMENSIONS | |||||||||||
| PRODUCT DIMENSION | DIA 120 mm X 35 mm / 120x120x35 mm | DIA 170 mm X 35 mm / 170x170x35 mm | DIA 225 mm X 35 mm / 225x225x35 mm | ||||||||
| CUTOUT | DIA 75-100 mm X 35 mm / 75-100x75-100x35 mm | DIA 75-150 mm X 35 mm / 75-150x75-150x35 mm | DIA 75-200 mm X 35 mm / 75-200x75-200x35 mm | ||||||||
| PACKAGING FEATURES | |||||||||||
| SALES PACKAGE | Mono & Master Packaging | Mono & Master Packaging | Mono & Master Packaging | ||||||||
| NET CONTENT | 1 NUMBER | 1 NUMBER | 1 NUMBER | ||||||||
| QTY IN MASTER PACK | 40 | 20 | 10 | ||||||||
| WARRANTY | 2 YEARS | 2 YEARS | 2 YEARS | ||||||||
